Development of Tetrahedron for Square Tail Fascia Geometry
based on Joe Bartok's Development of Tetrahedron Geometry
Joe Bartok's Square Tail Fascia Formulas
Joe Bartok's Web Site
square fascia hipnotes
hip models
sample calculations
Square Cut Fascia Angles and Dimensions Calculator
Square Cut Fascia intersects foot of Hip Rafter

Major Rafter Pitch Or Major Pitch Angle Minor Rafter Pitch Or Minor Pitch Angle Deck Plan Angle (0 - 180)
Fascia Thickness Fascia Width
Download Development of Tetrahedron for Square Tail Fascia Geometry DXF
Development of Tetrahedron for Saquare Tail Fascia Geometry .dxf -- auto generated DXF CAD file of Development of Tetrahedron for Fascia geometry drawing each time script is run


Development of Tetrahedron for Square Tail Fascias Angles

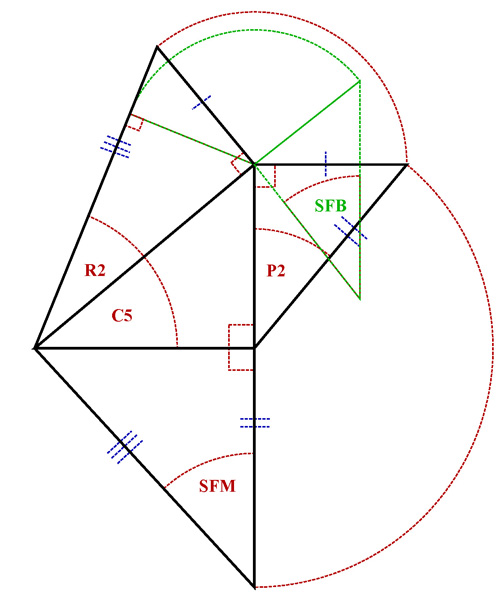

Development of Tetrahedron


Square Tail Fascia Material Cut Laying Flat (Side of Fascia, Perpendicular to Roof Surface)
Main Common Fascia Miter Angle = arctan (sin (Main Roof Pitch Angle)  tan( Adjacent Plan Angle))
Main Common Fascia Saw Bevel Angle = arcsin (cos (Adjacent Rafter Pitch Angle) * cos(Main Plan Angle))

Square Tail Fascia Material Cut On Edge (Top Of Fascia, in the Plane of the Roof Surface)
Main Common Fascia Miter Angle = arctan (cos (Main Roof Pitch Angle)  tan( Main Plan Angle))
Main Common Fascia Saw Bevel Angle = arctan (sin (Hip Rafter Angle)  tan(Adjacent Plan Angle))
------------------------------------------------------------------------------------------------------
Deck Angle = 90.00000
Main Plan Angle = 51.34019
Adjacent Plan Angle = 38.65981
Main Roof Pitch Angle = 33.69007
Adjacent Roof Pitch Angle = 39.80557
R1 Hip Rafter Angle = 27.50055
Main Jack Rafter Side Cut Angle = 33.64933
Adjacent Hip Rafter Backing Angle = 29.99339
90 - P2m Roof Sheathing Angle = 56.35067
Adjacent C5a Hip Rafter Backing Angle = 29.99339
90 - Adjacent C5a Hip Rafter Backing Angle = 60.00661

Square Tail Fascia Material Cut Laying Flat (Side of Fascia, Perpendicular to Roof Surface)
Main Common Fascia Miter Angle = arctan (sin (Main Roof Pitch Angle)  tan(Adjacent Plan Angle)) = 34.73648
Main Common Fascia Saw Bevel Angle = arcsin (cos (Adjacent Roof Pitch Angle) * cos(Main Plan Angle)) = 28.67914
Main Common Fascia Miter Angle = arctan (sin (33.69007)  tan(38.65981)) = 34.73648
Main Common Fascia Saw Bevel Angle = arcsin (cos (39.80557) * cos(51.34019)) = 28.67914

or

Square Tail Fascia Material Cut Laying Flat (Side of Fascia, Perpendicular to Roof Surface)
Main Common Fascia Miter Angle = arctan (tan (90 - Adjacent Hip Rafter Backing Angle) * sin(90- Main Jack Rafter Side Cut Angle)) = 34.73648
Main Common Fascia Saw Bevel Angle = arcsin (sin (90 - Adjacent Hip Rafter Backing Angle ) * cos(90- Main Jack Rafter Side Cut Angle)) = 28.67914
Main Common Fascia Miter Angle = arctan (tan (90 - 29.99339 ) * sin(90- 33.64933)) = 34.73648
Main Common Fascia Miter Angle = arctan (tan (60.00661) * sin(56.35057)) = 90- 55.26349 = 34.73651
Main Common Fascia Saw Bevel Angle = arcsin (sin (90 - 29.99339 ) * cos(90- 33.64933)) = 28.67914
Main Common Fascia Saw Bevel Angle = arcsin (sin (60.00661) * cos(56.35057)) = 28.67914


Square Tail Fascia Material Cut On Edge (Top Of Fascia, in the Plane of the Roof Surface)
Main Common Fascia Miter Angle = Main Jack Rafter Side Cut Angle
Main Common Fascia Saw Bevel Angle = Adjacent Hip Rafter Backing Angle
Main Common Fascia Miter Angle = arctan (cos (33.69007)  tan( 51.34019)) = 33.64934
Main Common Fascia Saw Bevel Angle = arctan (sin (27.50055)  tan(38.65981)) = 29.99339
