Polygon Roof Framing Developmental Geometry
Rafter Pitch Or Rafter Pitch Angle Polygon Number of Sides Radius of Polygon or Enter Common Rafter Run of Polygon
Download Polygon Geometry DXF
Polygon Geometry.dxf -- auto generated DXF CAD file of polygon geometry drawing each time script is run


Construction of Backing Angle for Octagon by Joe Bartok
Developmental Geometry for Polygon Roof Framing

S   is the length of any side of the polygon
N   is the number of sides
R   is the Radius of the circumscribed circle
apothem  is the Radius of the inscribed circle
pi is PI, approximately 3.14159

central angle = 360  N
working angle = 360  (N  2)
plan angle = (180 - central angle)  2
apothem multiplier = secant(360  ( N  2 ))
side wall multiplier = tan((360  (N  2 ))  2
projection angle a = 360  N
projection angle b = 90 - projection angle a
miter angle = 12.0 * tan( working angle)
hip run per foot = 12.0  / cos( working angle)
adjacent run = 12 * tan(working angle)
unit rise = 12 * tan(pitch angle)
CMC irregular pitch angle = arctan( unit rise  adjacent)

working angle multipler  = tan(360  (N  2)) 2
rafter multipler = 1  cos pitch angle
hip multipler = 1  cos hip angle
rise multipler = 1  tan pitch angle

inscribed radius = apothem
inscribed radius = S / (2 * tan(360  N))
inscribed radius = R * cos(360  N)

Common Rafter Run = apothem
Hip Rafter Run = Radius
Hip Rafter Run = Common Rafter Run  apothem multipler
Common Rafter Run = S  working angle multipler
S = Common Rafter Run  working angle multipler
Common Rafter Length = Common Rafter Run  rafter multipler
Hip Rafter Length = Hip Rafter Run  hip multipler
Common Rafter Rise = Common Rafter Run  rise multipler

Common Rafter Span =  Common Rafter Run  2
Common Rafter Length = Common Rafter Run  cos(Pitch Angle)
Common Rafter Rise = Common Rafter Run  tan(Pitch Angle)

Hip Rafter Angle = arctan(Common Rafter Rise  Hip Rafter Run)
Hip Rafter Length = Hip Rafter Run  cos(Hip Rafter Pitch)

The cotangent cot(x) is the multiplicative inverse of tan(x), 1/tan(x).
The cosecant csc(x) is the multiplicative inverse of sin(x),... 1/sin(x).
The secant sec(x) is the multiplicative inverse of cos(x), ... 1/cos(x).

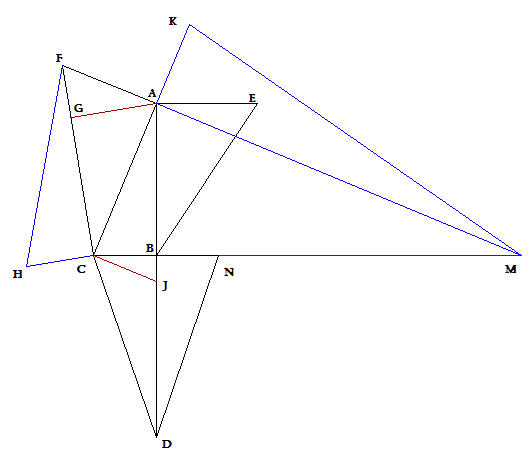

polygonal hip roof developmental geometry
Draw lines in this order for polygonal hip roof developmental geometry
Line C-N = Polygon Side Wall Length
Line A-B = Common Rafter Run 90 to C-N
Line A-E = Common Rafter Rise 90 to A-B
Line E-B = Common Rafter Length
Line A-C = Polygon Hip Rafter Run
Line A-F = Common Rafter Rise 90 to A-C
Line F-C = Polygon Hip Rafter Length
Line B-D = Common Rafter Length 90 to C-N
Line C-D = Polygon Hip Rafter Length
Line N-D = Polygon Hip Rafter Length
Line C-J = Polygon Hip Rafter Side Cut Rise 90 to A-C Intersects Line B-D
Line H-C = Polygon Hip Rafter Side Cut Rise 90 to F-C
Line F-H = Hip Side Cut Angle Line At Ridge

Line A-G = Hip Backing Rise 90 to F-C Also Altitude Of Hip Length Line F-C  (Backing Angle Rise)
Line A-K = Hip Backing Rise At Same Angle As Plan Angle (Backing Angle Rise)
Line A-M = 90 to K-A And Intersects Eave Line N-M (Backing Angle Run)
Line K-M = Intersects Eave Line N-M


Line F-A  Line C-A = Hip Pitch Angle
Line A-B  Line C-B = Plan Angle
Line C-B  Line A-B = Polygon Working Angle
Line B-D  Line C-B = Sheathing Angle
Line D-B  Line C-B = Jack Rafter Side Cut Angle
Line C-B  Line D-B = Jack Rafter Side Cut Angle on Face Of The Plumb Cut
Line K-A  Line M-A = Hip Backing Angle
Line H-C  Line C-F = Hip Side Cut Angle At Ridge
