Sloped Frustum of Pyramid Calculations for Polygons or Cones Roof Framing Geometry
based on Complex Roof Geometry Discussed at JLC-Online.


Sloped Frustum of Pyramid
Major Rafter Pitch Or Major Pitch Angle Minor Rafter Pitch Or Minor Pitch Angle Polygon Radius Intercept Point (inches)
feet
inches
frac
Polygon Sides Or Enter Cone
O.C. Spacing
Or Enter Cone
Rotation Angle
Rotate Polygon Draw Ellipse Show Feet Inches
Download Sloped Frustum of Pyramid Geometry DXF
Sloped Frustum of Pyramid Geometry Framing.dxf -- auto generated DXF CAD file of Sloped Frustum of Pyramid of Polygon or Cone geometry drawing each time script is run


Cone Roof With Elliptical Base Started by Billy Dillon and based on Billy Dillon's Sketch
Sloped Frustum of a Pyramid Node Calculator by Joe Bartok
Development of the Tetrahedron by Joe Bartok
Calculation of Ellipse Arc Length by Joe Bartok

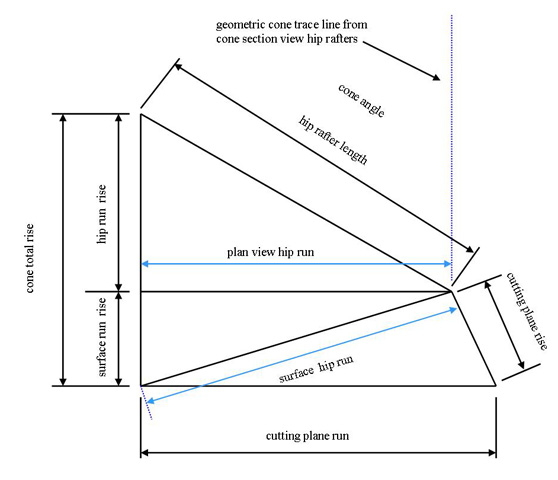

Sloped Frustum of Pyramid

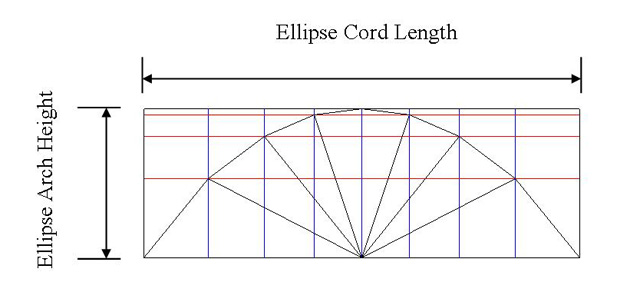

Ellipse Grid Layout
    Ellipse Valley Layout Points
  1. Layout a rectangle the size of the ellipse cord length and ellipse arch height.
  2. Snap blue lines from left to right using the Ellipse X Axis dimensions.
  3. Snap red lines from top to bottom of the rectangle using the Ellipse Y Axis dimensions.
  4. Snap black lines for the cutting plane hips where the blue & red lines progressively intersect.
  5. Snap black lines between the end points of the cutting plane hips to form the valley of the ellipse.

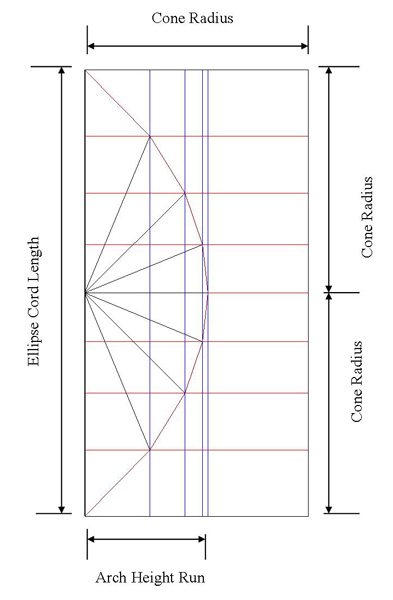

Spline Grid Layout
    Spline Plan View Layout Points
  1. Layout a rectangle the size of the ellipse cord length and cone radius length.
  2. Snap blue lines from left to right using the Station On X Axis dimensions.
  3. The last blue line snapped should be the Arch Height Run of the Ellipse.
  4. Snap red lines from top to bottom of the rectangle using the Station On Y Axis dimensions.
  5. Snap black lines for the cutting plane hips where the blue & red lines progressively intersect.
  6. Snap red lines between the end points of the plan view hips to form the spline of the valley curve.
