SBE Builders is a commercial and residential framing contractor located in Discovery Bay California. Dedicated to the art of Carpentery & Roof Framing. We are the professionals for the future of the craft of carpentry.

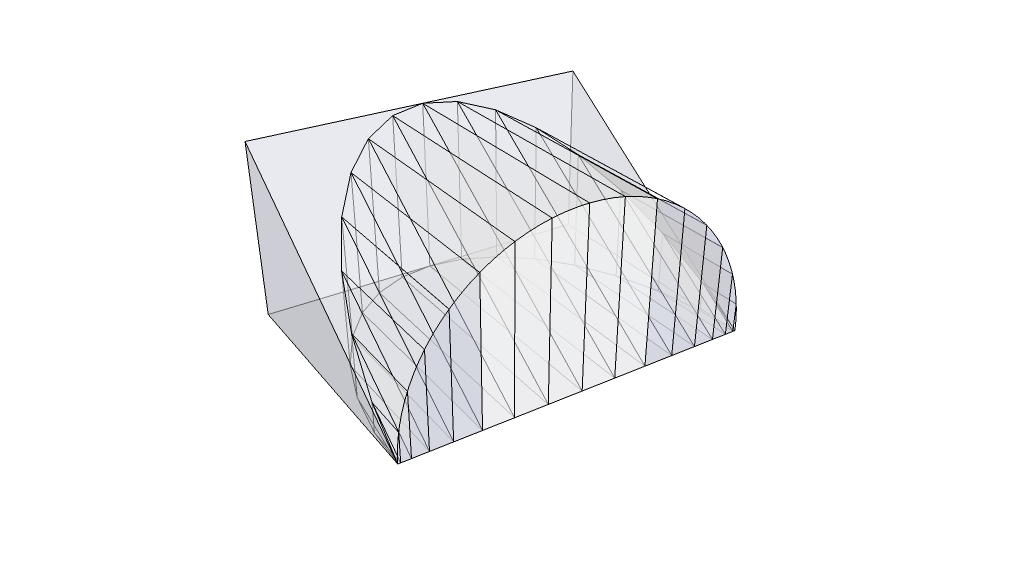

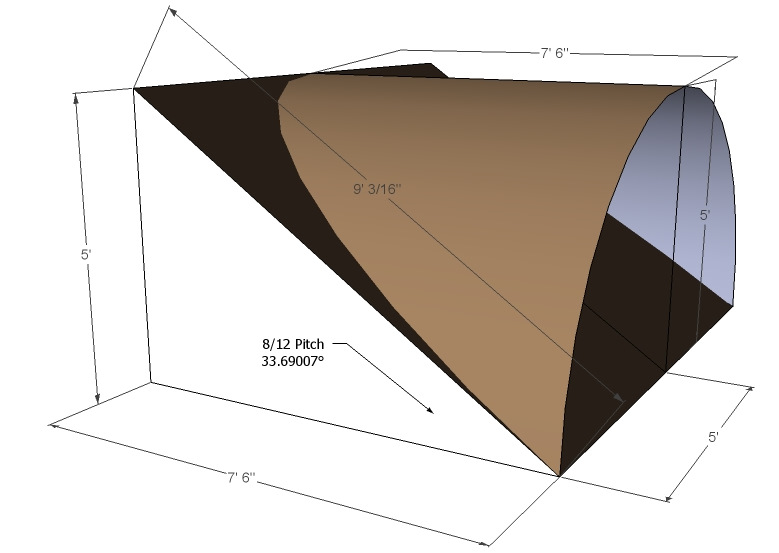

This Barrel Roof Dormer calculator will return roof framing trigonometry & geometry details for:

  1. Barrel Roof Semi Major Axis of the Elliptical Valley Footprint
  2. Barrel Roof Plan View Run of the Ellipse from the intersection of the barrel roof and main roof.
  3. Total Arc Length of Barrel Roof
  4. Arc Angle of Purlin Rafter Spacing
  5. Cord Length of Purlin Rafter Spacing
  6. Ellipse layout points on Main Roof Surface
  7. Purlin Rafters cut perpendicular to Roof Surface
  8. Purlin Rafter Slope Angle
  9. Purlin Rafter Miter Angle
  10. Purlin Rafter Saw Blade Bevel Angle
  11. Barrel Roof Plan View Rafter Lengths
  12. X & Y Points for Elliptical Ploting of the Ellipse on the Main Roof Surface
  13. Real Roof Surface plotting points for the plywood roof sheathing
  14. Ellipse Valley Sleeper Offset
  15. Purlin Rafter Deduction for Ellipse Valley Sleeper Offset

Barrel Roof Dormer Framing Calculator

Barrel Roof Details
    Main Roof Pitch


Purlin Rafter O.C. Spacing
Entered in Inches

    Barrel Roof Radius
Entered in Inches

show results in feet & inches


results are show below in the IFrame window

Pitch Break Shed Roof Dim

Barrel Roof Framing

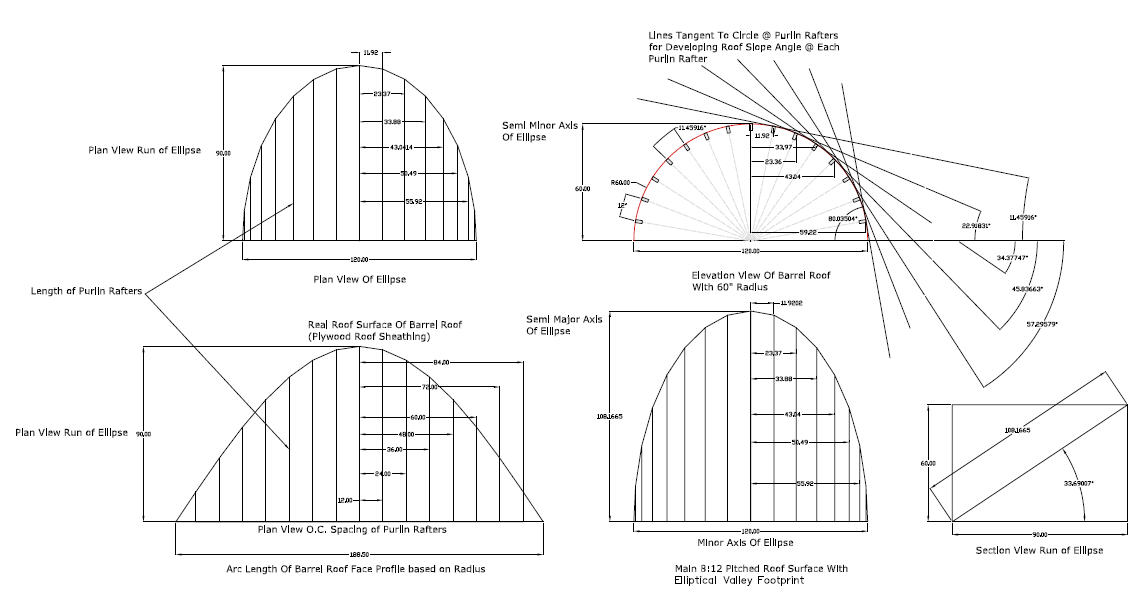

Barrel Roof Framing Math & Trigonometry

Main Roof Semi Major Axis = radius  sin(Roof Pitch Angle)
Plan View Run Semi Major Axis = radius  tan(Roof Pitch Angle)
Arc Angle Of Spacing in Radians = spacing  radius (This gives you the arc angle in radians)
Degree to Radians = 3.141593  180   = 0.017453
Radians to Degrees = 180  3.141593  = 57.29578
Arc Angle of Spacing in Degrees = (spacing  radius ) * 57.29578 = Arc Angle in Degrees

i = 1,2,3...etc
point_x = radius * cos(90 - (Arc Angle Of Spacing Radins * i))
point_y_on_ellipse = Semi_Major_Axis * sqrt((Semi_Minor_Axis * Semi_Minor_Axis) - (point_x * point_x))  Semi_Minor_Axis
Plan View Purlin Rafter Length =  point_y_on_ellipse * cos(Roof Pitch Angle)
Purlin Slope Angle  = arcsin(point_x  radius)

Purlin Face Cut Perpendicular to Roof Surface
Saw Blade Miter  Angle = arctan (cos(Purlin Slope Angle)  tan(Roof Pitch Angle))
Saw Blade Bevel Angle = arcsin (cos(Roof Pitch Angle) * sin(Purlin Slope Angle))

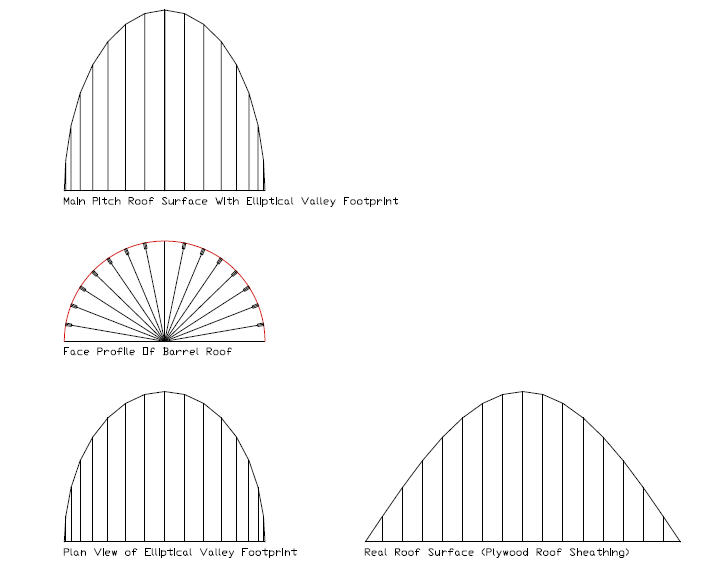

Download Barrel Roof Dormer Framing Drawing in DXF format
Barrel Roof Dormer Framing.dxf -- auto generated DXF CAD file of Barrel Roof Dormer Framing drawing each time script is run
barrel roof DXF File

Barrel Roof Eliptical Valley Offset

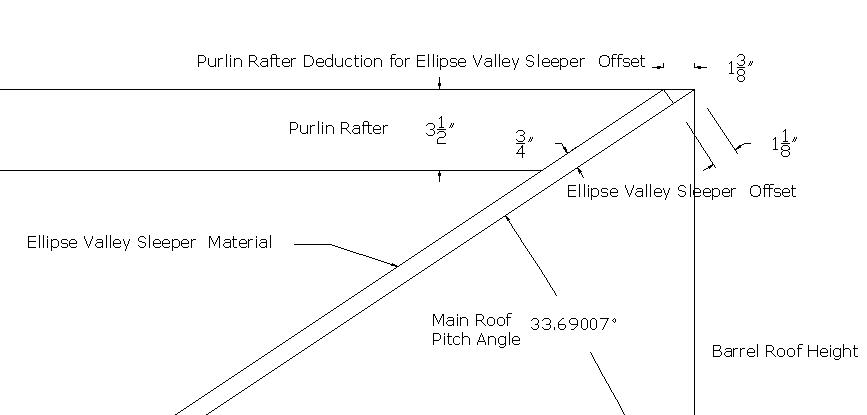

You can bevel the ellipse valley sleeper material or slide the ellipse valley sleeper material down hill by the ellipse valley sleeper offset dimension.
When you offset the ellipse valley sleeper, the ellipse dimensions stay the same for both ellipses.
In the image below you can see the direction of the ellipse valley sleeper bevel is a constant dimension between the two ellipses.



Real Roof Surface Layout on Plywood Roof Sheathing for Barrel Roof Dormer Sheathing

Barrel Roof Sheathing

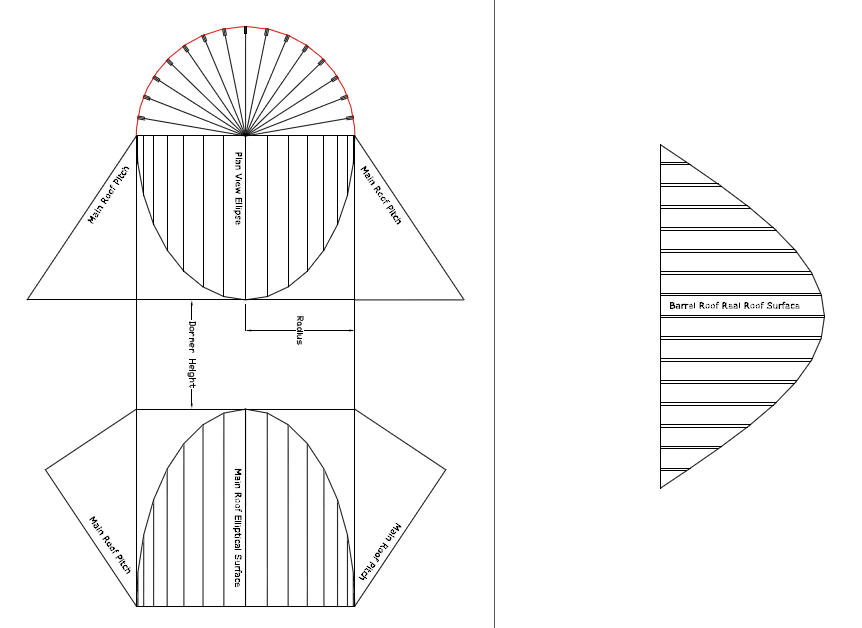

Down load the Barrel Roof Cut Out Pattern HERE for a paper model of the barrel roof geometry.
